Thunderbolt

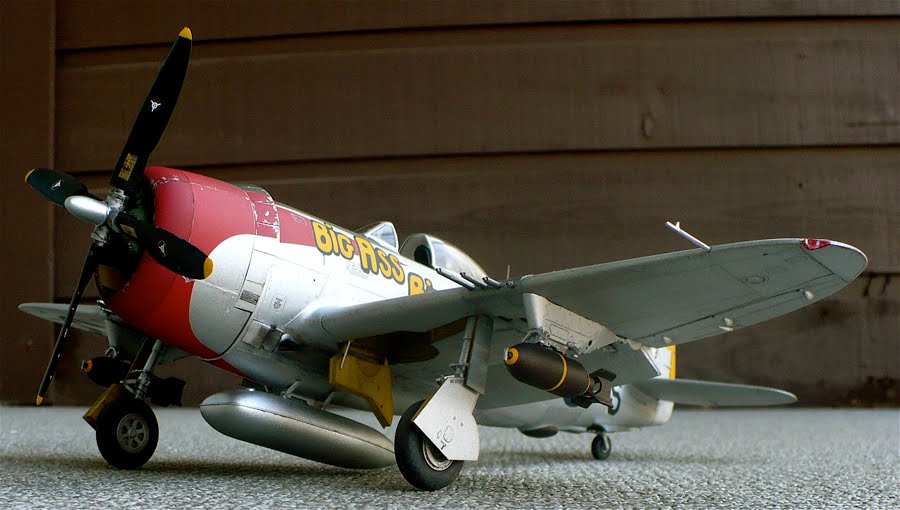

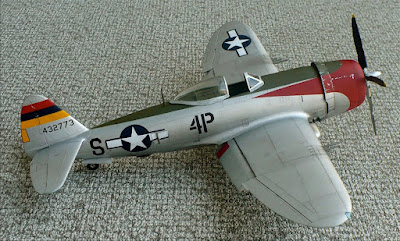

Here are some images of Hasegawa's 1/32 scale Republic P-47D Thunderbolt. From Wikipedia "Republic Aviation's P-47 Thunderbolt, also known as the "Jug," was the largest, heaviest, and most expensive fighter aircraft in history to be powered by a single reciprocating engine.[2] It was one of the main United States Army Air Forces (USAAF) fighters of World War II, and served with other Allied air forces. The P-47 was effective in air combat but proved especially adept at ground attack. It had eight .50-caliber machine guns, four per wing. When fully loaded the P-47 could weigh up to eight tons. A modern-day counterpart in that role, the A-10 Thunderbolt II, takes its name from the P-47.

Initial deliveries of the Thunderbolt to the USAAF were to the 56th Fighter Group, which was also on Long Island. The 56th served as an operational evaluation unit for the new fighter. Teething problems continued. A Republic test pilot was killed in an early production P-47B when it went out of control in a dive, and crashes occurred due to failure of the tail assembly. The introduction of revised rudder and elevator balance systems and other changes corrected these problems. In spite of the problems, the USAAF was interested enough to order an additional 602 examples of the refined P-47C, with the first of the variant delivered in September 1942.

Beginning in January 1943, Thunderbolt fighters were sent to the joint Army Air Forces – civilian Millville Airport in Millville, New Jersey in order to train civilian and military pilots.

Essentially similar to the P-47B, the initial P-47Cs featured strengthened all-metal control surfaces, an upgraded GE turbosupercharger regulator and a short vertical radio mast. After the initial manufacture of a block of 57 P-47Cs, production moved to the P-47C-1, which had a 13 in (33 cm) fuselage extension forward of the cockpit at the firewall to correct centre of gravity problems, ease engine maintenance and allow installation of a new engine mount. There were a number of other changes, such as revised exhausts for the oil coolers, and fixes to brakes, undercarriage and electrical system as well as a redesigned rudder and elevator balance. The 55 P-47C-1s were followed by 128 P-47C-2s which introduced a centerline hardpoint with under-fuselage shackles for either a 500 lb (227 kg) bomb or a 200 U.S. gal (758 l, 167 Imp gal) fuel tank that conformed to the underside of the fuselage. The main production P-47C sub-variant was the P-47C-5 which introduced a new whip antenna and the R-2800-59 engine with water-methanol injection with a war emergency power rating of 2,300 hp (1,716 kW). With the use of pressurized drop tanks, the P-47C was able to extend its range on missions beginning 30 July 1943.

The P-47C was sent to England for combat operations in late 1942. The 56th FG was sent overseas to join the 8th Air Force, whose 4th and 78th Fighter Groups were soon to be equipped with the Thunderbolts. The 4th Fighter Group was built around a core of experienced American pilots, volunteers who had served with the British Royal Air Force (RAF) during 1941–43 in the Eagle Squadrons and who flew the Spitfire until January 1943. The 78th FG, formerly a P-38 group, also began conversion to the P-47 in January 1943.

The first P-47 combat mission took place 10 March 1943 when the 4th FG took their aircraft on a fighter sweep over France. The mission was a failure due to radio malfunctions. All P-47s were refitted with British radios, and missions resumed 8 April. The first P-47 air combat took place 15 April with Major Don Blakeslee of the 4th FG scoring the Thunderbolt's first air victory. On 17 August, P-47s performed their first large-scale escort missions, providing B-17 bombers with both penetration and withdrawal support of the Schweinfurt-Regensburg mission, and claiming 19 kills against three losses.

By mid-1943, the Jug was also in service with the 12th Air Force in Italy, and it was fighting against the Japanese in the Pacific with the 348th Fighter Group flying escort missions out of Brisbane, Australia.


Refinements of the Thunderbolt continued, leading to the P-47D, of which 12,602 were built. The "D" model actually consisted of a series of evolving production blocks, the last of which were visibly different from the first.

The first P-47Ds were actually the same as P-47Cs. Republic could not produce Thunderbolts fast enough at its Farmingdale plant on Long Island, so a new plant was built at Evansville, Indiana. The Evansville plant built a total of 110 P-47Ds, which were completely identical to P-47C-2s. Farmingdale aircraft were identified by the "-RE" suffix after the block number, while Evansville aircraft were given the "-RA" suffix.

The P-47D-1 through P-47D-6, the P-47D-10, and the P-47D-11 successively incorporated changes such as the addition of more engine cooling flaps around the back of the cowl to reduce the engine overheating problems that had been seen in the field. Engines and engine subsystems saw refinement, as did the fuel, oil and hydraulic systems. Additional armor protection was also added for the pilot.

The P-47D-15 was produced in response to requests by combat units for increased range. The internal fuel capacity was increased to 375 U.S. gal (1,421 l) and the bomb racks under the wings were made "wet" (equipped with fuel plumbing) to allow a jettisonable drop tank pressurized by vented exhaust air to be carried under each wing, in addition to the belly tank. Five different auxiliary tanks were fitted to the Thunderbolt during its career:
