Friday, March 25, 2011

Command Module

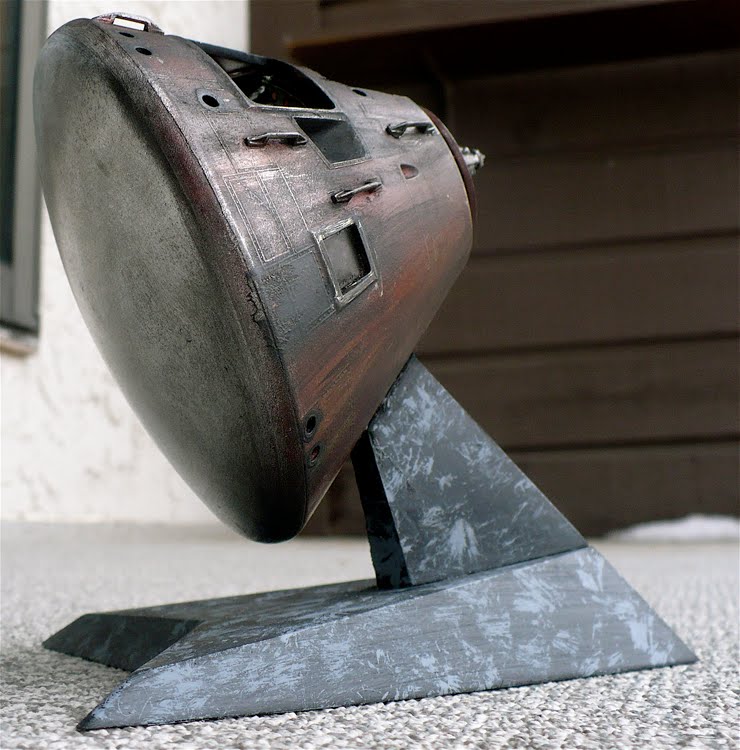

Here are some images of Revell's 1/32 scale Command Module (after re entry) from the Command/Service Module model kit.
From Wikipedia"

The Command Module was a truncated cone (frustum) measuring 10 feet 7 inches (3.2 m) tall and having a diameter of 12 feet 10 inches (3.9 m) across the base. The forward compartment contained two reaction control engines, the docking tunnel, and the components of the Earth Landing System. The inner pressure vessel housed the crew accommodations, equipment bays, controls and displays, and many spacecraft systems. The last section, the aft compartment, contained 10 reaction control engines and their related propellant tanks, fresh water tanks, and the CSM umbilical cables.

Construction

The command module's inner structure was an aluminum "sandwich" consisting of a welded aluminum inner skin, a thermally bonded honeycomb core, and a thin aluminum "face sheet". The central heat shield consisted of 40 individual panels interspersed with several holes and openings for the reaction control engines and after-compartment equipment access. The central compartment structure consisted of an inner aluminum face sheet with a steel honeycomb core, a glass-phenolic ablative honeycomb heat shield, a layer of q-felt fibrous insulation, a pore seal, a moisture barrier, and a layer of aluminized PET film thermal strips.

The aft heat shield consisted of four brazed honeycomb panels, four spot-welded sheet metal fairings, and a circumferential ring. The fairing segments were attached to the honeycomb panels and ring with conventional fasteners. The steel honeycomb core and outer face sheets were then thermally bonded to the inner skin in a giant autoclave. The aft heat shield is nearly identical to the central, with the exception of the outer alluminized PET film layer.

Earth landing system

The components of the ELS were housed around the forward docking tunnel. The forward compartment was separated from the central by a bulkhead and was divided into four 90-degree wedges. The ELS consists of three main parachutes, three pilot parachutes, two drogue parachute motors, three upright bags, a sea recovery cable, a dye marker, and a swimmer umbilical.

The CM's center of mass was offset a foot or so from the centre of pressure (along the symmetry axis). This provided a rotational moment during re entry, angling the capsule and providing some lift (a lift to drag ratio of about 0.368). The capsule was then steered by rotating the capsule using thrusters; when no steering was required, the capsule was spun slowly, and the lift effects cancelled out. This system greatly reduced the g-force experienced by the astronauts, permitted a reasonable amount of cross range and allowed the capsule to be targeted within a few miles.

At 24,000 feet (7.3 km) the forward heat shield was jettisoned using four pressurized-gas compression springs. The drogue parachutes were then released and slowed the spacecraft to 125 miles per hour (201 km/h). At 10,700 feet (3.3 km) the drogues were jettisoned. The pilot parachutes were deployed, which pulled out the mains. These slowed the CM to 22 miles per hour (35 km/h) for landing. The portion of the CM which made first contact with the water surface was built with crushable ribs to further mitigate the impact. The Apollo CM could safely parachute to an ocean landing with at least two parachutes (as it happened on Apollo 15), as the third parachute acted as a safety precaution.
